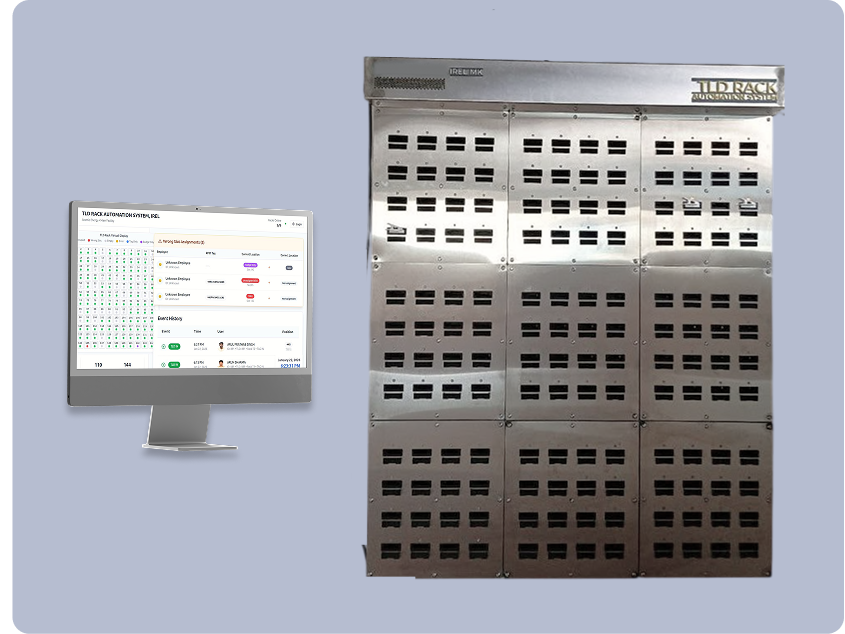

TLD Rack Automation System
The TLD Rack Automation System is a network-connected, RFID-enabled rack solution designed for the secure storage, identification, and monitoring of TLD badges in radiation safety and regulated laboratory environments. The system ensures server-validated slot assignment, real-time slot-level status indication, centralized monitoring, and automated alert generation, thereby improving traceability, operational accuracy, and compliance.
The architecture integrates RFID/NFC readers, embedded PoE controllers, Ethernet-based networking, centralized server processing, and cellular communication into a modular and scalable rack system. The system is designed for continuous, unattended operation with minimal manual intervention, making it suitable for radiation safety laboratories and personnel dosimetry management facilities.
RFID Identification:
13.56 MHz NFC-based TLD badge detection using PN532 or equivalent RFID readers
System Capacity
9 racks × 16 slots per rack (Total capacity: 144 TLD badges)
Control & Processing
ESP32 PoE–based embedded controllers with centralized Raspberry Pi 4 server
Power & Networking
Single Ethernet cable providing both power and data via Power-over-Ethernet (PoE)
Alerts & Communication
LTE Cat-1 modem for automated SMS alerts in case of non-returned or incorrectly placed badges
User Indication
Slot-level LED and audible buzzer indication with server-side validation
